SUMMA S CLASS 2 160 T-SERIES VINYL CUTTERS
T SERIES – TANGENTIAL CUTTING HEAD
Featuring computer-controlled blade rotation and up to 600 grams of cutting force, Summa’s T Series combines the precision of a flatbed cutter with the ease and speed of a roll-fed cutter by using our legendary True Tangential cutting head. The T Series simply cuts with more force and accuracy than any cutter in its class.
Summa S2™ T Series combines S Class power and precision with a state-of-the-art True Tangential™ cutting head. Coupled with an astonishing array of innovations and built-in capabilities, this plotter offers so much more than any other in its class.
Ships standard with 62″ tangential knife cutter with integral stand and basket, OPOS X and sheet cut-off system.
GoSign cutting software tailored to your needs
The user-friendly software GoSign is your first choice cutting software, allowing you to manage your preferred workflow with great flexibility. Settings and action sets can be created and tailored according to your specific cutting jobs at any given time.
OPOS Alignment for smart production
The Optical Positioning System is an automated contour alignment system. The OPOS X sensor technology senses 4 to 128 marks on a wide range of materials. Enjoy a fully-automated workflow using OPOS barcodes, enabling you to contour cut multiple jobs without intervention.
Vibrant Colour Touch Screen
The intuitively redesigned menu system and full-colour touch interface allow for effortless navigation. Tactile and easy to use, the touch screen displays large amounts of information in an easily accessible format.
Unmatched Die-Cutting Precision
Summa’s unique FlexCut feature takes cutting technology to the next level. This adjustable feature creates a perforated cut that allows the material to retain the necessary rigidity to transport through the cutter while remaining easy to break apart into individual pieces.
Legendary tracking for ultimate precision
Summa’s exclusive MicroSprocket™ drive drum, coupled with powerful servo motors, delivers jaw-dropping accuracy. Media is conditioned as it advances to assure spot-on tracking precision.
Ethernet Connectivity
Multiple computers can now control one unit across a network, or a crossover cable can be used for direct connection – creating an all-new avenue for faster communication and data transmission speeds.

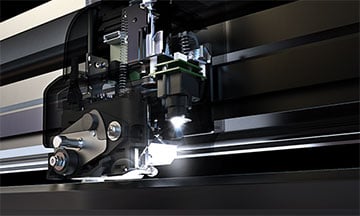

Camera recognition with OPOS CAM
Summa delivers yet another amazing innovation with the printing industry’s first camera recognition alignment solution for friction-driven vinyl drum cutters.
A servo-powered Roll-up System
After a job is finished, the system will roll up the artwork neatly and prepare the machine for the next unattended job. The integrated panelling feature splits long-length runs into shorter consecutive jobs.
Increased yield with G-performance
With G-Performance, you can go up a level and boost the speed of digital cutting operations on the S Class 2 roll cutters by up to 40%. Its impact is especially noticeable on the faster reading of the registration marks and when cutting wider substrates.
Specifications
| MODELS |  |  |  |  |
| CUTTING TYPE | True Tangential with Drag Knife Cutting Mode Capability | |||
| CUTTING WIDTHS | S2 T75 29 inch (74 cm), (Extended Mode: width of the material) | S2 T120 47 inch (120 cm), (Extended Mode: width of the material) | S2 T140 53 inch (135 cm), (Extended Mode: width of the material) | S2 T160 62 inch (158 cm), (Extended Mode: width of the material) |
| CUTTING SPEED | All S2 models cut at speeds up to 56 inches (1414 mm) per second diagonal | |||
| AXIAL ACCELERATION | Up to 4 G | |||
| MAXIMUM ACCELERATION | Up to 5.5 G diagonal | |||
| ALIGNMENT TYPE |
| |||
| TRACKING PERFORMANCE | Within ± 0.004 in. (± 0.1 mm) on plots up to 40 ft. long (12 m) on rolls up to 760 mm wide long up to 4 m long (13 ft.) on rolls over 760 mm wide | |||
| ACCURACY | 0.2 % of movement or 0.25 mm, whichever is greater | |||
| CUTTING FORCE | 0-600 grams of down-force, in 5 gram increments | |||
| DISPLAY LANGUAGE | English; French; German; Dutch; Italian; Spanish; Polish; Czech; Latvian; Lithuanian; Portuguese | |||
| CONNECTIVITY | USB; Ethernet | |||
| POWER REQUIREMENTS | 100-120 / 220-240 VAC, 50/60 Hz, 85 VA maximum | |||
| DIMENSIONS | S2 T75 141 (W) x 68 (D) x 111 (H) cm 55.5 (W) x 26.8 (D) x 43.7 (H) in. | S2 T120 187 (W) x 68 (D) x 111 (H) cm 73.6 (W) x 26.8 (D) x 43.7 (H) in. | S2 T140 225 (W) x 68 (D) x 111 (H) cm 73.6 (W) x 26.8 (D) x 43.7 (H) in. | S2 T160 225 (W) x 68 (D) x 111 (H) cm 88.6 (W) x 26.8 (D) x 43.7 (H) in. |
| SHIPPING WEIGHT | S2 T75 152 lbs (69 kg) | S2 T120 189 lb (86 kg) | S2 T140 198 lbs (90 kg) | S2 T160 251 lbs (114 kg) |
| OPERATING TEMPERATURE | 59˚ to 95˚F (15˚ to 35˚C) | |||
| STANDARD ACCESSORIES | WinPlot or MacSign Cut Software, CutterControl Parameter Software, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), Standard 36˚ Blade Holder, 2 Standard 36˚ Blades, Cut-off Knife (Manual Slitter), 2 Cut-off Razor Blades, Stand and Basket. | |||
| OPTIONAL ACCESSORIES | Roll-up system for Summa S Class 2 140 and Summa S Class 2 160 | |||
